Mã sản phẩm: DLBM 45 MALE ELBOW
Giá: Liên hệ
DK-Lok DLBM Tube to Male Pipe, 45 degree Male Elbow Tube Fitting, Double Ferrule, 316 Stainless Steel
DLBM 45 MALE ELBOW
ĐẦU NỐI 1 HẠT BẮP CO 45
|
Configuration | Tube Fitting |
Tube to Male Pipe |
|
Construction | Tube Fitting |
Double Ferrule |
|
Material | Tube Fitting |
316 Stainless Steel, Brass, Carbon Steel, Duplex, Super Duplex, Aluminum, Alloy 20 Hastelloy C276, Alloy 400, Alloy 600, Alloy 625, Alloy 825, Titanium Gr. 2, PTFE |
|
Model/Series |
DLBM 45 Model |
|
Series |
DLBM 45 Model |
|
Type | Tube Fitting |
45 MALE ELBOW |
The DK-Lok DLBM is a(n) 45 degree male elbow compression tube fitting with a tube to male pipe configuration, 316 stainless steel body material, and double ferrule construction. This product is a(n) DLBM Model.
DK-Lok tube fittings are designed using industrial codes and specifications with additional cutting-edge engineering on swaging action and sealing integrity. DK-Lok provides excellent leak-free sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration, and many other stringent applications.
|
Material |
Bar stock |
Forging |
|
Stainless Steel316 |
ASTM A276 |
ASTM A182 ASME SA182 JIS G3214 |
|
ASTM A479 |
||
|
ASME SA479 |
||
|
JIS G4303 |
||
|
Brass |
ASTM B16 UNS C36000 |
ASTM B283 UNS C37700 JIS H3250 Alloy C3771 |
|
ASTM B453 UNS C35300 |
||
|
JIS H3250 Alloy C3604 |
||
|
Carbon Steel |
ASTM A675 Gr.60-90 |
ASTM A105 JIS G4051 S20C - S48C |
|
JIS G4051 S20C - S48C |
||
|
Duplex |
ASTM A276 S31803 |
ASTM A182 F51 |
|
ASTM A479 S31803 |
||
|
Super Duplex |
ASTM A479 S32750 |
ASTM A182 F51 |
|
Aluminum |
ASTM B211 Alloy 2024 T6 |
ASTM B247 |
|
Alloy 20 |
ASTM B473 UNS N08020 |
ASTM B462 UNS N08020 |
|
Hastelloy C276 |
ASTM B574 UNS N10276 |
ASTM B564 UNS N10276 |
|
Alloy 400 |
ASTM B164 UNS N04400 |
ASTM B564 UNS N04400 |
|
Alloy 600 |
ASTM B166 UNS N06600 |
ASTM B564 UNS N06600 |
|
Alloy 625 |
ASTM B446 UNS N06625 |
ASTM B564 UNS N06625 |
|
Alloy 825 |
ASTM B425 UNS N08825 |
ASTM B564 UNS N08825 |
|
Titanium Gr. 2 |
ASTM B348 Gr.2 |
ASTM B381 F3 |
|
PTFE |
ASTM D1710 |
ASTM D3293 |
Connects fractional tube to female NPT thread
|

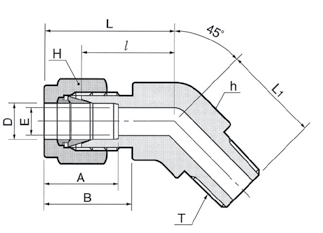

Part No. |
Tube O.D. D |
T NPT |
E Min. |
Width across flat |
A |
B |
l |
L |
L1 |
||||
|
h |
H |
||||||||||||
|
in. |
mm |
in. |
mm |
in. |
mm |
||||||||
|
DLBM2-2N |
1/8 |
3.17 |
1/8 |
2.4 |
1/2 |
12.70 |
7/16 |
11.11 |
12.70 |
15.24 |
15.77 |
22.38 |
16.51 |
|
DLBM4-2N |
1/4 |
6.35 |
1/8 |
4.8 |
1/2 |
12.70 |
9/16 |
14.28 |
15.24 |
17.78 |
17.27 |
24.63 |
16.51 |
|
DLBM4-4N |
1/4 |
6.35 |
1/4 |
4.8 |
1/2 |
12.70 |
9/16 |
14.28 |
15.24 |
17.78 |
17.27 |
24.63 |
21.08 |
|
DLBM6-2N |
3/8 |
9.52 |
1/8 |
4.8 |
5/8 |
15.87 |
11/16 |
17.46 |
16.76 |
19.30 |
20.57 |
27.94 |
18.28 |
|
DLBM6-4N |
3/8 |
9.52 |
1/4 |
7.11 |
5/8 |
15.87 |
11/16 |
17.46 |
16.76 |
19.30 |
20.57 |
27.94 |
22.86 |
|
DLBM6-6N |
3/8 |
9.52 |
3/8 |
7.11 |
13/16 |
20.64 |
11/16 |
17.46 |
16.76 |
19.30 |
21.84 |
29.21 |
24.13 |
|
DLBM8-6N |
1/2 |
12.70 |
3/8 |
9.65 |
13/16 |
20.64 |
7/8 |
22.22 |
22.86 |
21.84 |
21.84 |
32.00 |
24.13 |
|
DLBM8-8N |
1/2 |
12.70 |
1/2 |
10.41 |
13/16 |
20.64 |
7/8 |
22.22 |
22.86 |
21.84 |
21.84 |
32.00 |
28.95 |
|
DLBM12-12N |
3/4 |
19.05 |
3/4 |
15.74 |
1-1/8 |
28.58 |
1-1/8 |
28.58 |
24.38 |
21.84 |
23.87 |
34.03 |
30.98 |
|
DLBM16-16N |
1 |
25.40 |
1 |
22.35 |
1-3/8 |
34.93 |
1-1/2 |
38.10 |
31.24 |
26.41 |
28.19 |
40.38 |
37.84 |
Connects metric tube to female NPT thread
|
Part No. |
Tube O.D. D |
T NPT |
E Min. |
Width across flat |
A |
B |
l |
L |
L1 |
|
|
h |
H |
|||||||||
|
DLBM6M-4N |
6 |
1/4 |
4.8 |
12.7 |
14.0 |
15.3 |
17.7 |
21.8 |
29.4 |
22.9 |
|
DLBM12M-8N |
12 |
1/2 |
9.5 |
20.64 |
22.0 |
22.8 |
22.0 |
21.8 |
31.9 |
29.0 |
DK-Lok Z Series fittings are dimensionally identical to DK-Lok Tube
Fittings.
To order Z series, insert Z in the standard DK-Lok tube fitting part number.
Examples: DUZ, DMCZ, DNZ
