Mã sản phẩm: DMC MALE CONNECTOR FOR METAL GASKET
Giá: Liên hệ
DK-Lok DMC-GB, DMC-G Tube to Male Pipe, Male Connector for Bonded Gasket Seal Tube Fitting, Double Ferrule, 316 Stainless Steel.
DMC MALE CONNECTOR FOR METAL GASKET
|
Configuration | Tube Fitting |
Tube to Male Pipe |
|
Construction | Tube Fitting |
Double Ferrule |
|
Material | Tube Fitting |
316 Stainless Steel, Brass, Carbon Steel, Duplex, Super Duplex, Aluminum, Alloy 20 Hastelloy C276, Alloy 400, Alloy 600, Alloy 625, Alloy 825, Titanium Gr. 2, PTFE |
|
Model/Series |
DMC-GB, DMC-G Model |
|
Series |
DMC-GB, DMC-G Model |
|
Type | Tube Fitting |
MALE CONNECTOR FOR METAL GASKET |
The DK-Lok DMC-GB, DMC-G is a(n) male connector for bonded gasket seal compression tube fitting with a tube to male pipe configuration, 316 stainless steel body material, and double ferrule construction. This product is a(n) DMC-G Model (Male Connector for Bonded Gasket Seal)
and DMC-GB (Male Connector for Metal Gasket previously DOM)
DK-Lok tube fittings are designed using industrial codes and specifications with additional cutting-edge engineering on swaging action and sealing integrity. DK-Lok provides excellent leak-free sealing on high pressure gas, vacuum, impulse, thermal shock, heavy vibration, and many other stringent applications.
|
Material |
Bar stock |
Forging |
|
Stainless Steel316 |
ASTM A276 |
ASTM A182 ASME SA182 JIS G3214 |
|
ASTM A479 |
||
|
ASME SA479 |
||
|
JIS G4303 |
||
|
Brass |
ASTM B16 UNS C36000 |
ASTM B283 UNS C37700 JIS H3250 Alloy C3771 |
|
ASTM B453 UNS C35300 |
||
|
JIS H3250 Alloy C3604 |
||
|
Carbon Steel |
ASTM A675 Gr.60-90 |
ASTM A105 JIS G4051 S20C - S48C |
|
JIS G4051 S20C - S48C |
||
|
Duplex |
ASTM A276 S31803 |
ASTM A182 F51 |
|
ASTM A479 S31803 |
||
|
Super Duplex |
ASTM A479 S32750 |
ASTM A182 F51 |
|
Aluminum |
ASTM B211 Alloy 2024 T6 |
ASTM B247 |
|
Alloy 20 |
ASTM B473 UNS N08020 |
ASTM B462 UNS N08020 |
|
Hastelloy C276 |
ASTM B574 UNS N10276 |
ASTM B564 UNS N10276 |
|
Alloy 400 |
ASTM B164 UNS N04400 |
ASTM B564 UNS N04400 |
|
Alloy 600 |
ASTM B166 UNS N06600 |
ASTM B564 UNS N06600 |
|
Alloy 625 |
ASTM B446 UNS N06625 |
ASTM B564 UNS N06625 |
|
Alloy 825 |
ASTM B425 UNS N08825 |
ASTM B564 UNS N08825 |
|
Titanium Gr. 2 |
ASTM B348 Gr.2 |
ASTM B381 F3 |
|
PTFE |
ASTM D1710 |
ASTM D3293 |

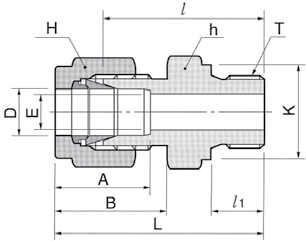

Connects metric tube to female ISO parallel thread
|
Part No. |
Tube O.D. D |
T PF |
E Min. |
Width across flat |
A |
B |
s |
s1 |
L |
K |
|
|
h |
H |
||||||||||
|
DMC3M-2GB(-2G) |
3 |
1/8 |
2.4 |
14 |
12 |
12.9 |
15.3 |
23.4 |
7.1 |
30.0 |
13.8 |
|
DMC3M-4GB(-4G) |
3 |
1/4 |
2.4 |
19 |
12 |
12.9 |
15.3 |
28.7 |
11.2 |
35.3 |
18.0 |
|
DMC4M-2GB(-2G) |
4 |
1/8 |
2.4 |
14 |
12 |
13.7 |
16.1 |
24.1 |
7.1 |
30.7 |
13.8 |
|
DMC6M-2GB(-2G) |
6 |
1/8 |
4.0 |
14 |
14 |
15.3 |
17.7 |
24.9 |
7.1 |
32.3 |
13.8 |
|
DMC6M-4GB(-4G) |
6 |
1/4 |
4.8 |
19 |
14 |
15.3 |
17.7 |
30.2 |
11.2 |
37.6 |
18.0 |
|
DMC6M-6GB(-6G) |
6 |
3/8 |
4.8 |
22 |
14 |
15.3 |
17.7 |
31.5 |
11.2 |
38.9 |
21.8 |
|
DMC6M-8GB(-8G) |
6 |
1/2 |
4.8 |
27 |
14 |
15.3 |
17.7 |
37.3 |
14.2 |
44.7 |
26.0 |
|
DMC8M-2GB(-2G) |
8 |
1/8 |
4.0 |
15 |
16 |
16.2 |
18.6 |
25.7 |
7.1 |
33.2 |
13.8 |
|
DMC8M-4GB(-4G) |
8 |
1/4 |
6.4 |
19 |
16 |
16.2 |
18.6 |
31.0 |
11.2 |
38.5 |
13.8 |
|
DMC8M-6GB(-6G) |
8 |
3/8 |
6.4 |
22 |
16 |
16.2 |
18.6 |
32.3 |
11.2 |
39.8 |
21.8 |
|
DMC8M-8GB(-8G) |
8 |
1/2 |
6.4 |
27 |
16 |
16.2 |
18.6 |
38.1 |
14.2 |
45.6 |
26.0 |
|
DMC10M-4GB(-4G) |
10 |
1/4 |
5.9 |
19 |
19 |
17.2 |
19.5 |
31.8 |
11.2 |
39.4 |
18.0 |
|
DMC10M-6GB(-6G) |
10 |
3/8 |
7.9 |
22 |
19 |
17.2 |
19.5 |
33.0 |
11.2 |
40.6 |
21.8 |
|
DMC10M-8GB(-8G) |
10 |
1/2 |
7.9 |
27 |
19 |
17.2 |
19.5 |
38.9 |
14.2 |
46.5 |
26.0 |
|
DMC12M-4GB(-4G) |
12 |
1/4 |
5.9 |
22 |
22 |
22.8 |
22.0 |
32.5 |
11.2 |
42.6 |
18.0 |
|
DMC12M-6GB(-6G) |
12 |
3/8 |
7.9 |
22 |
22 |
22.8 |
22.0 |
33 |
11.2 |
43.1 |
21.8 |
|
DMC12M-8GB(-8G) |
12 |
1/2 |
9.5 |
27 |
22 |
22.8 |
22.0 |
38.9 |
14.2 |
49.0 |
26.0 |
|
DMC12M-12GB(-12G) |
12 |
3/4 |
9.5 |
35 |
22 |
22.8 |
22.0 |
42.7 |
15.7 |
52.8 |
32.0 |
|
DMC15M-8GB(-8G) |
15 |
1/2 |
11.9 |
27 |
25 |
24.4 |
22.0 |
33.9 |
14.2 |
49.0 |
26.0 |
|
DMC16M-6GB(-6G) |
16 |
3/8 |
7.9 |
24 |
25 |
24.4 |
22.0 |
33.8 |
11.2 |
43.9 |
21.8 |
|
DMC16M-8GB(-8G) |
16 |
1/2 |
11.9 |
27 |
25 |
24.4 |
22.0 |
38.9 |
14.2 |
49.0 |
26.0 |
|
DMC18M-8GB(-8G) |
18 |
1/2 |
11.9 |
27 |
30 |
24.4 |
22.0 |
38.9 |
14.2 |
49.0 |
26.0 |
|
DMC18M-12GB(-12G) |
18 |
3/4 |
15.1 |
35 |
30 |
24.4 |
22.0 |
42.7 |
15.7 |
52.8 |
32.0 |
|
DMC20M-8GB(-8G) |
20 |
1/2 |
11.9 |
30 |
32 |
26.0 |
22.0 |
40.4 |
14.2 |
50.5 |
26.0 |
|
DMC20M-12GB(-12G) |
20 |
3/4 |
15.9 |
35 |
32 |
26.0 |
22.0 |
42.7 |
15.7 |
52.8 |
32.0 |
|
DMC22M-12GB(-12G) |
22 |
3/4 |
15.9 |
35 |
32 |
26.0 |
22.0 |
42.7 |
15.7 |
52.8 |
32.0 |
|
DMC22M-16GB(-16G) |
22 |
1 |
18.3 |
41 |
32 |
26.0 |
22.0 |
45.2 |
18.3 |
55.3 |
39.0 |
|
DMC25M-12GB(-12G) |
25 |
3/4 |
15.9 |
35 |
38 |
31.3 |
26.5 |
45.2 |
15.7 |
57.5 |
32.0 |
|
DMC25M-16GB(-16G) |
25 |
1 |
19.8 |
41 |
38 |
31.3 |
26.5 |
47.8 |
18.3 |
60.1 |
39.0 |
|
DMC28M-16GB(-16G) |
28 |
1 |
19.8 |
41 |
46 |
36.6 |
36.6 |
49.3 |
18.3 |
70.1 |
39.0 |
|
DMC28M-20GB(-20G) |
28 |
1-1/4 |
21.8 |
50 |
46 |
36.6 |
36.6 |
53.1 |
19.8 |
73.9 |
49.0 |
|
DMC30M-20GB(-20G) |
30 |
1-1/4 |
21.8 |
50 |
46 |
36.6 |
36.6 |
53.1 |
19.8 |
73.9 |
49.0 |
|
DMC32M-20GB(-20G) |
32 |
1-1/4 |
28.6 |
50 |
50 |
42.0 |
41.6 |
55.9 |
19.8 |
78.9 |
49.0 |
|
DMC38M-24GB(-24G) |
38 |
1-1/2 |
31.8 |
55 |
60 |
49.4 |
47.9 |
61.7 |
20.6 |
89.3 |
54.7 |
ISO Pipe Thread
The International Standards Organization prepares the ISO 228-1 and ISO 7-1 international standard to standardize the nomenclature of several international pipe threads.
DK-Lok Z Series fittings are dimensionally identical to DK-Lok Tube
Fittings.
To order Z series, insert Z in the standard DK-Lok tube fitting part number.
Examples: DUZ, DMCZ, DNZ
