HELS HLS-100 LRY KHỚP NỐI GIÃN NỞ CÓ THANH BUỘC NỐI RÃNH

Mã sản phẩm: HELS HLS-100 LRY

Giá: Liên hệ

Universal type joint with tie rods are installed to pipelines where there is laterlal or vertical dilatation movements which is caused by different zones in....

Mô tả sản phẩm

HELS HLS-100 LRY KHỚP NỐI GIÃN NỞ CÓ THANH BUỘC NỐI RÃNH

HELS HLS-100 LRY UNIVERSAL TYPE JOINT WITH TIE RODS GROOVED

HLS-100 LRY Thông tin sản phẩm:

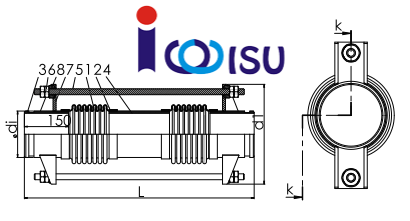

Universal type joint with tie rods are installed to pipelines where there is laterlal or vertical dilatation movements which is caused by different zones in order to keep the system in safe. This type of expansion joints are designed to absorb x and y movements, according to system requirement. Universal type joint with tie rod consist of double ply bellows, intermediate pipe, flanges and tie-rods. It is capable to prevent any collapse movement with bellows and tie-rods at both sides.
Universal type joint with tie rods are installed dilatation zones as well as underground pipelines and used all type of flow media. Bellows are in stainless steel, connections in stainless steel or carbon steel.
Connection: Floating flange, fixed flanged, butt-weld, screwed or grooved.
Nominal Sizes: DN25(1’’)-DN1200(48’’)
Working Temperature And Pressure: PN40 ,-80/+427oC (optional; -80/+1100oC )

Thông số kỹ thuật: HLS-100 LRY

Bellow : AISI 321, Carbon Steel, AISI 316&304 (Optional); AISI 304/316L/316Ti)
Tie Rod : 8.8+6 Carbon Steel (Optional; AISI 304/316)Grooved Pipe : St 37.2 Carbon Steel, (Optional; AISI 304/316)
Intermediate Pipe : St 37.2 Carbon Steel, (Optional; AISI 304/316)
Connection : Grooved Pipe x Grooved Pipe
Working Pressure : (Optional; PN 16, PN 25-......PN 64)
Working Temperature : -80/+427 °C (Optional -80/+1100 °C)

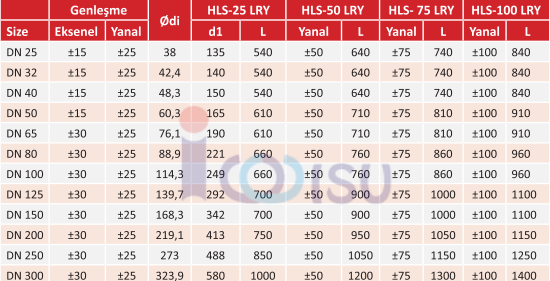

HLS-100 LRY
