HELS HLS-25 LRF KHỚP NỐI GIÃN NỞ LIÊN HỢP NỐI BÍCH

HELS HLS-25 LRF UNIVERSAL TYPE JOINT WITH TIE RODS FLANGE

Thông tin sản phẩm:

• Universal type joint with tie rods are installed to pipelines where there is laterlal or vertical dilatation movements which is caused by different zones in order to keep the system in safe. This type of expansion joints are designed to absorb x and y movements, according to system requirement. Universal type joint with tie rod consist of double ply bellows, intermediate pipe, flanges and tie-rods. It is capable to prevent any collapse movement with bellows and tie-rods at both sides.
• Universal type joint with tie rods are installed dilatation zones as well as underground pipelines and used all type of flow media. Bellows are in stainless steel, connections in stainless steel or carbon steel.
• Connection: Floating flange, fixed flanged, butt-weld, screwed or grooved.
• Nominal Sizes: DN25(1’’)-DN1200(48’’)
• Working Temperature And Pressure: PN40 ,-80/+427oC (optional; -80/+1100oC )

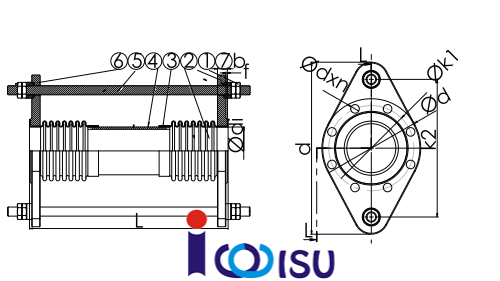

Thông số kỹ thuật: HLS-25 LRF

• Bellow : AISI 321, Stainless Steel, AISI 316&304 (Optional); AISI 304/316L/316Ti)
• Tie Rod : St. 37.2 Carbon Steel (Optional; AISI 304/316)
• Flange : St 37.2 Carbon Steel, (Optional; AISI 304/316)
• Ara Boru : St 37.2 Carbon Steel, (Optional; AISI 304/316)
• Connection : Floating Flange x Floating Flange
• Working Pressure : (Optional; PN 16, PN 25-......PN 64)
• Working Temperature : -80/+427 °C (Optional; -80/+1100 °C)

Tên gọi liên quan: KHỚP GIÃN NỞ KIM LOẠI CHỊU NHIỆT HLS-25 LRF, KHỚP NỐI GIÃN NỞ KIM LOẠI CHỊU NHIỆT HLS-25 LRF, KHỚP NỐI GIÃN NỞ NỐI BÍCH HLS-25 LRF, KHỚP NỐI GIÃN NỠ LIÊN HỢP, GIÃN NỠ LIÊN HỢP NỐI BÍCH, UNIVERSAL TYPE JOINT HLS-25 LRF
