HELS HLS-30 DBF KHỚP NỐI GIÃN NỞ KIM LOẠI CHỊU LỰC NỐI BÍCH

Mã sản phẩm: HLS-30 DBF

Giá: Liên hệ

External pressurized expansion joints are being used as an alternative for axial type of expansion joints, which movement capability is limited.

Mô tả sản phẩm

HELS HLS-30 DBF KHỚP NỐI GIÃN NỞ KIM LOẠI CHỊU LỰC NỐI BÍCH

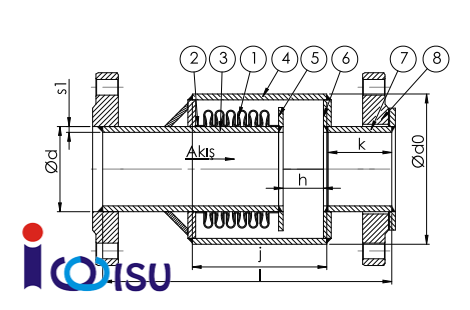

HELS HLS-30 DBF EXTERNAL PRESSURIZED EXPANSION JOINTS FLANGED

HLS-30 DBF

HLS-30 DBFThông tin sản phẩm:

  • External pressurized expansion joints are being used as an alternative for axial type of expansion joints, which movement capability is limited. External pressurized expansion joints are preffered to use for long and straight pipelines in order to reduce the number of expansion joints requirement.
  • External pressurized expansion joints are capable to absorb 60-90-120-150mm total movement, easy to install and user friendly. It is also easy to cover with any insulation material and it is degisned to absorb both lateral and vertical movements. The flow media can pass through both bellow and outside of bellow that ths feature increases the capability to absorb high pressures. External pressurized expansion joints can be used for all type of flow media and pipeline systems.
  • Connection: Fixed flanged, floating flanged, butt-weld or screwed.
  • Material: Bellow in stainless steel, connections in stainless steel or carbon steel. It is also possible to produce in different materials if required.
  • Nominal Sizes: DN25(1’’) – DN 1200(48’’)
  • Working Temperature: -80/+427oC (optional; -80/+1100oC )
  • Working Pressures: 2 – 5 – 4 – 6 – 10 – 16 – 25 – 40 – 64 bar or more. It depens on the pipe size.

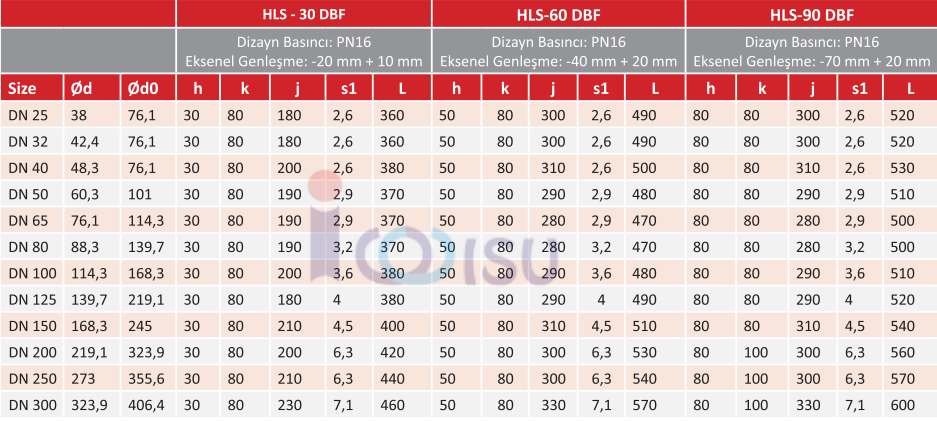

Thông số kỹ thuật: HLS-30 DBF

  • Bellow : AISI 321, Stainless Steel, (Optional); AISI 304/316L/316Ti)
  • Inner and Outer Pipe : St. 37.2 Carbon Steel (Optional; AISI 304/316L/316Ti)
  • Flange : St 37.2 Carbon Steel, (Optional; AISI 304/316)
  • Connection : Floating Flanged x Fixed Flanged
  • Working Pressure : (Optional; PN 16, PN 25-......PN 64)
  • Working Temperature : -80/+427 °C (Optional; -80/+1100 °C)

HLS-30 DBFTên gọi liên quan: KHỚP NỐI GIÃN NỞ CHỊU LỰC NỐI BÍCH, KHỚP NỐI GIẢN NỞ CHỊU NHIỆT NỐI BÍCH, KHỚP NỐI CHỊU ÁP LỰC NỐI BÍCH HLS-30 DBF, KHỚP NỐI CHỊU NHIỆT NỐI BÍCH, KHỚP NỐI KIM LOẠI NỐI BÍCH HLS-30 DBF.
