HELS HLS-30 MKB-L KHỚP NỐI GIÃN NỞ NỐI HÀN

HELS EXPANSION JOINT BUTT WELD HLS-30 MKB-L

Thông tin sản phẩm:

• Axial expansion joints absorb expansion laterally, caused by the thermal difference of the media inside the pipeline.

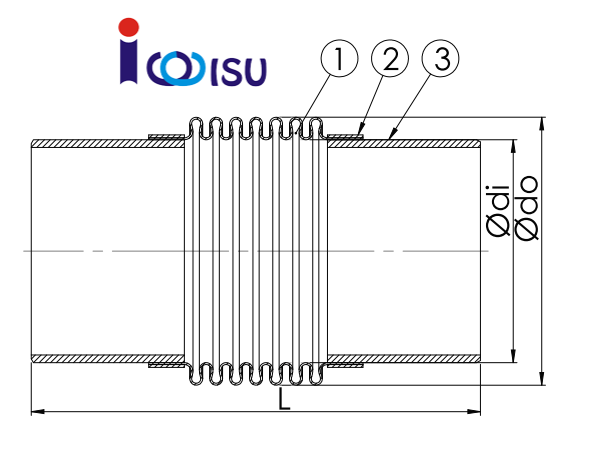

  The pipeline system is divided into several parts and axial expansion joints are installed along the pipeline according to calculations of expansion. Axial expansion joints are designed to absorb lateral movement 30mm and 60mm. Also, it is possible to produce for absorbtion of other movements based on the calculations for different pipelines. The main part of axial expansion joints is stainless steel corrugated bellow.
• For different requirement there are additional parts such as inner sleeve, tie-rods, cover he wall thickness of bellow, number of piles and additional parts of expansion joints are designed according to temperature, pressure and media of pipeline.

Thông số kỹ thuật:

• Bellow : AISI 321,Stainless Steel, AISI 316&304 (Optional); AISI 304/316L/316Ti)
• Inner Sleeve : AISI 321, Stainless Steel (Optional); AISI 304/316L/316Ti)
• Butt-Weld : St 37.2 Carbon Steel, (Optional; AISI 304/316)
• Connection : Butt - Weld x Butt - Weld
• Working Pressure : (Optional; PN 16, PN 25-......PN 64)
• Working Temperature : -80/+427 °C (Optional; -80/+1100 °C)

Tên gọi liên quan: KHỚP NỐI HÀN CHỊU NHIỆT HLS-30 MKB-L, KHỚP NỐI HÀN KIM LOẠI HELS HLS-30 MKB-L, KHỚP NỐI HELS HLS-30 MKD-L, AXIAL TYPE EXPANSION JOINT HLS-30 MKB-L, AXIAL TYPE EXPANSION JOINT, HELS HLS-30 MKB-L.
