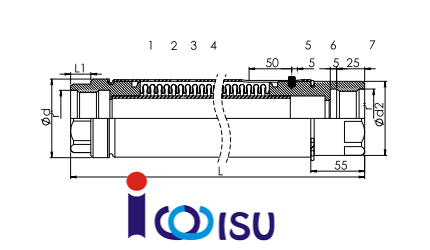

HELS HLS-50-BKB PIPE EXPANSION JOINTS

Thông tin sản phẩm:

• Pipe expansion joints are being used in order to absorb expansion and shrinkage movements of heating and hot water pipelines of High buildings. Pipe expansion joints are installed vertically and provides the system to work safely by its bellows.
• There is 3 mm expansion in the pipelines with temperature 90/70 c. The expansion of 7 floor (21mt) building can be
  absorbed by elbows at air pipeline and main pipeline. It is obligatory to use pipe expansion joints for buildings which is higher than 10 floors and it has to be installed in every 30 meters (10 floors).
• Connection: Screwed or Butt-weld
• Nominal Sizes: From 1/2’’ to 2’’ screw connectıon, bigger sizes up to DN150 butt-weld Working Pressure and Temperature: PN40, 100oC

Thông số kỹ thuật: HLS-50-BKB

• Bellow : AISI 321, Stainless Steel, (Optional); AISI 304/316L/316Ti)
• Inner Sleeve : St 37.2 Carbon Steel
• Outer Cover : Aluminium / Carbon Steel
• Movement : 50 mm (-45, +5)
• Connection : Screwed or Butt-Weld
• Design Pressure : 16 kg / cm²
• Max. Working Temperature : 100 °C
