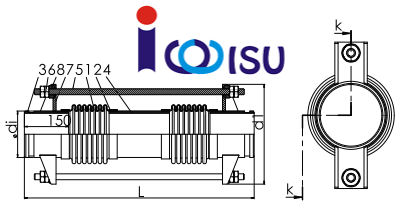

HELS HLS-75 LRY KHỚP NỐI GIÃN NỞ CÓ THANH BUỘC CÓ RÃNH
HELS HLS-75 LRY UNIVERSAL TYPE JOINT WITH TIE RODS GROOVED
Thông tin sản phẩm:
- Universal type joint with tie rods are installed to pipelines where there is laterlal or vertical dilatation movements which is caused by different zones in order to keep the system in safe. This type of expansion joints are designed to absorb x and y movements, according to system requirement. Universal type joint with tie rod consist of double ply bellows, intermediate pipe, flanges and tie-rods. It is capable to prevent any collapse movement with bellows and tie-rods at both sides.
- Universal type joint with tie rods are installed dilatation zones as well as underground pipelines and used all type of flow media. Bellows are in stainless steel, connections in stainless steel or carbon steel.
- Connection: Floating flange, fixed flanged, butt-weld, screwed or grooved.
- Nominal Sizes: DN25(1’’)-DN1200(48’’)
- Working Temperature And Pressure: PN40 ,-80/+427oC (optional; -80/+1100oC )

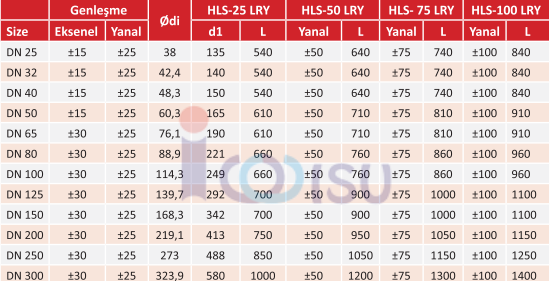

Thông số kỹ thuật: HLS-75 LRY
- Bellow : AISI 321, Carbon Steel, AISI 316&304 (Optional); AISI 304/316L/316Ti)
- Tie Rod : 8.8+6 Carbon Steel (Optional; AISI 304/316)Grooved Pipe : St 37.2 Carbon Steel, (Optional;
- AISI 304/316)
- Intermediate Pipe : St 37.2 Carbon Steel, (Optional; AISI 304/316)
- Connection : Grooved Pipe x Grooved Pipe
- Working Pressure : (Optional; PN 16, PN 25-......PN 64)
- Working Temperature : -80/+427 °C (Optional -80/+1100 °C)
Tên gọi liên quan: KHỚP GIÃN NỞ KIM LOẠI CHỊU NHIỆT CÓ RÃNH, KHỚP NỐI GIÃN NỞ CÓ RÃNH HLS-75 LRY, KHỚP NỐI GIÃN NỠ CÓ RÃNH HLS-75 LRY, GIÃN NỠ CÓ RÃNH , UNIVERSAL TYPE JOINT HLS-75 LRY
