HELS HLS-KK-S KHỚP NỐI MỀM CAO SU DÙNG BÍCH THÉP

HELS HLS-KK-S CARBON STEEL FLANGED RUBBER EXPANSION JOINTS

Thông tin sản phẩm:

• Rubber expansion joints can absorb vibration, noise and elongation in the pipeline. Due to its soft structure, it can absorb all type of movements. It prevents thermal elongation and protects the pipeline from water hammer. There is no need any additional gasket due to rubber material and it is very easy to install with floating flanges. Rubber expansion joints are used up to 10 bar due to metal wire reinforcement.
• Connection: Floating Flange
• Material: Special Rubber
• Nominal Sizes: DN 32(1 1/4″) – DN 600 (24″)
• Working Pressure: Max. 10 bar. Working pressure depends on nominal size ad working temperature.
• Working Temperature: – 10 °C to 90°C.
• Applications:Pumps, Fans, Chillers, Air Compressors, Marine Application, Iron And Steel Factories Chemical Applications

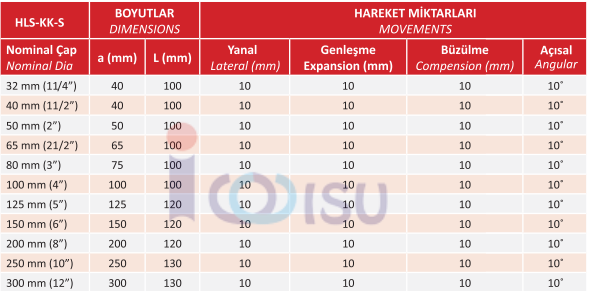

Thông số kỹ thuật: HLS-KK-S

• Rubber Material : EPDM / NBR with reinforced Steel
• Naylon Sargı Lifleri : Sentetik Fiber
• Çelik Tel : Carbon Steel
• Flange Material : Carbon Steel
• Pressure: PN 16
• Basınç Dayanımı : 10 Bar
• Temperature : 90 °C
