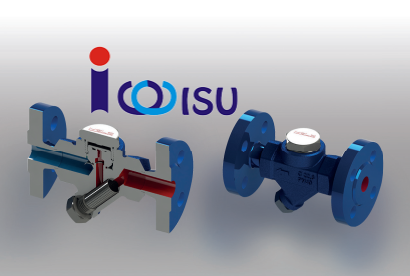

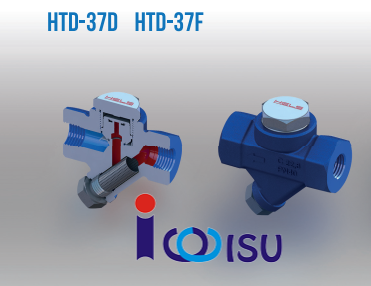

HELS HTD-37D BẪY HƠI NHIỆT ĐỘNG HỌC

HELS HTD-37D THERMODYNAMIC STEAM TRAP

Thông tin sản phẩm:
Body material is forged steel and iner parts are stainless steel. Seat and disk material is hardened. Operating surfaces precision machined for perfect leakproofing and HTD-37D has inner filter which can be maintained very easily. Spare parts are also available.

Connection Types

1/2”-3/4”- 1” Screwed BSP or NPT
½””- 3/4”-1” Socket weld ANSI B16.11
DN15, DN20, DN25 EN 1092-1 Flanged

Certification: Please ask EN 10204 3.1 certification while ordering.

Application

– Iron Machines
– Drying Units
– Pressing Units
– Steam Jacket Pipelines

Capacity Diagraphm: Differantial pressure is the difference between inlet pressure to outlet pressure of steam trap. Max. Operating backpressure must not exceed 80% of the upstream pressure.

Ordering: HTD-37D BSP ½”
Please inform connection type, steam pressure, steam temperature, condansate load, delta P.

Thông số kỹ thuật: HTD-37D

• Body : Stainless Steel
• Cover : Stainless Steel

• Filter : Stainless Steel

• Max. Working Pressure : 40 Bar

• Max. Working Temperature : 400 °C

• Min. Pressure : 0,3 Bar
