HELS HTK-75F BẪY HƠI NHIỆT ĐỘNG HỌC

HELS HTK-75F THERMODYNAMIC STEAM TRAP

Thông tin sản phẩm:
The life time of HTK-75D is very long in corrosion due to its completely stainless steel material. It can be used for discharging non-vaporing gases. It is resistant to water hammer in steam lines.
Its maintennance is easy and thermostatic capsul is discharging condansate with vaporing line. It dischanges condansate continously or intermittently depend on the volume of condansate in pipeline. HTK-75F produced 10k as standard and operates 10°C deg below evaporation temperature.

Connection Types
1/2”-3/4”- 1” Screwed BSP or NPT
½””- 3/4”-1” Socket weld ANSI B16.11
DN15, DN20, DN25 EN 1092-1 Flanged

Certification: Please ask EN 10204 3.1 certification while ordering.

Application

– Iron Machines
– Drying Units
– Pressing Units
– Steam Jacket Pipelines
Capacity Diagraphm: Differantial pressure is the difference between inlet pressure to outlet pressure of steam trap. Max. operating backpressure must not exceed 80% of the upstream pressure.

Ordering: HTK-75F BSP ½”
Please inform connection type, steam pressure, steam temperature,
condansate load, delta P.

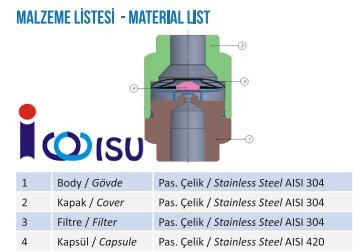

Thông số kỹ thuật: HELS HTK-75F

• Body : Stainless Steel
• Cover : Stainless Steel

• Filter : Stainless Steel

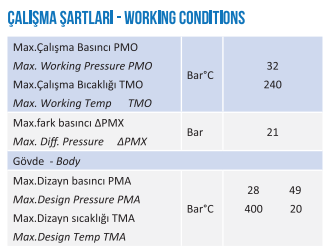

• Max. Working Pressure : 32 °C

• Max. Working Temperature : 240 °C
