KHỚP NỐI MỀM HLS-400 KMY GIÃN NỞ KIỂU KHỚP CÁC ĐĂNG NỐI RÃNH

HELS HLS-400 KMY GIMBAL TYPE EXPANSION JOINTS GROOVED

Thông tin sản phẩm:

• Gimbal type expansion joints are installed to pipelines where there is dilatation movements which is caused by different zones, seismic movements caused by earthquake in order to keep the system in safe. This type of expansion joints are designed to absorb x, y and z movements, according to system requirement.

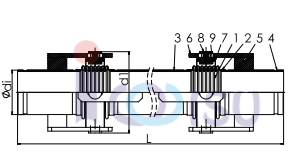

• Gimbal type expansion joints consist of double ply bellows, intermediate pipe, flanges and gimbals. It is capable to
  prevent any collapse movement with bellows and gimbals at both sides. Gimbal type expansion joints are installed dilatation zones as well as underground pipelines and used with all type of flow media. Bellows are in stainless steel, connections in stainless steel or carbon steel.
• Connection: Floatıng Flange, Fıxed Flanged, Butt-weld, Screwed
• Grooved Nominal Sizes: DN 25(1″) – DN 1200 (48″)
• Working Temperature and Pressure: PN40 basınç,-80/+427oC (optional; -80/+1100oC )

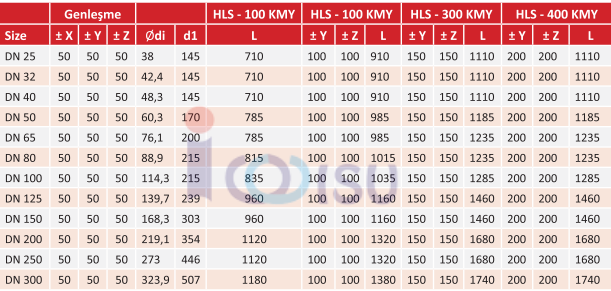

Thông số kỹ thuật: HLS-400 KMY

• Bellow : AISI 321, Stainless Steel, (Optional); AISI 304/316L/316Ti)
• Butt-Weld : St 37.2 Carbon Steel, (Optional; AISI 304/316)
• Intermediate Pipe : St 37.2 Carbon Steel, (Optional; AISI 304/316)
• Gimbal : St 37.2 Carbon Steel, (Optional; AISI 304/316)
• Connection : Grooved x Grooved
• Working Pressure : (Optional; PN 16, PN 25-......PN 64)
• Working Temperature : -80/+427 °C (Optional; -80/+1100 °C)
