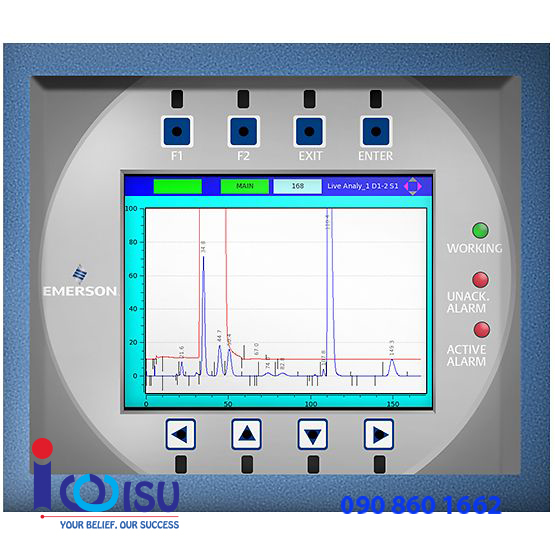

Rosemount 1500XA Process Gas Chromatograph

Rosemount 1500XA Process Gas Chromatograph

Mã sản phẩm: 20181101-114

Giá: Liên hệ

The Rosemount 1500XA process gas chromatograph combines the proven analytical components of Emerson's field-mounted gas chromatographs with the larger oven c...

Mô tả sản phẩm

Specifications

Ports: Serial Communication Ports: Three termination blocks,configurable as RS-232, RS-422 or RS-485 and one D-sub(9-pin) port for PC connection

Input: Analog Inputs: Two standard inputs filtered with transient
Digital Inputs: Five inputs, user assignable, optically isolated,rated to 30 VDC @ 0.5 A

Output: Analog Outputs: Six isolated outputs, 4–20 mA
Digital Outputs: Five user-assignable outputs, Form C andelectro-mechanically isolated, 24V DC

Mounting: Wall-mount (standard); free-standing (optional)

Dimensions: 127 cm H x 102 cm W x 61 cm D (50" H x 40" W x 24" D)

Certifications/Approvals: Class 1 Div. 2, Groups B, C, D with Z-Purge

Weight: Approximately 68 kg. (150 lbs.)

Features

Traditional air-bath oven design for maximum application flexibility
Dual Ethernet communications for connection to DCS systems and maintenance wide area networks using industry standard protocols
New XA valves, based on the reliable design of our line of superior 6-port chromatograph diaphragm valves.
Oven capacity for up to eight chromatograph valves and four detectors, up to two of which can be flame detectors
Choice of thermal conductivity flame ionization, and flame photometric detectors
Thermal conductivtity detector (TCD) sensitive down to very low parts-per-million levels
Storage of up to 2,500 chromatograms, including sample calibration and validation streams
2 clocks allow up to 2 applications with different analysis cycle times to run simultaneously
Optional inter-column thermal conductivity (ITC) detectors
Parallel chromatography to break down complex analysis into simpler analysis trains to improve cycle times and ease of use
