Specifications

Warranty

Up to 5-year limited warranty

Rangedown

Up to 100:1 (5:1 flow turndown)

Measurement Range

Up to 1000 inH2O (2,48 bar) differential

Line Size

2 to 12 in. (50 to 300 mm)

Output

Differential pressure, scaled variable

Communication Protocol

WirelessHART®

Process Wetted Material

316 SST

Diagnostics

Basic Diagnostics

Certifications/Approvals

NACE®, hazardous location, see full specs for complete list of certifications

Update Rate

1 sec. to 60 min., user selectable

Power Module Life

Up to 10-year life, field replaceable (order separately)

Wireless Range

Internal antenna (225 m)

Features

WirelessHART® technology is secure, cost-effective and delivers >99% data reliability

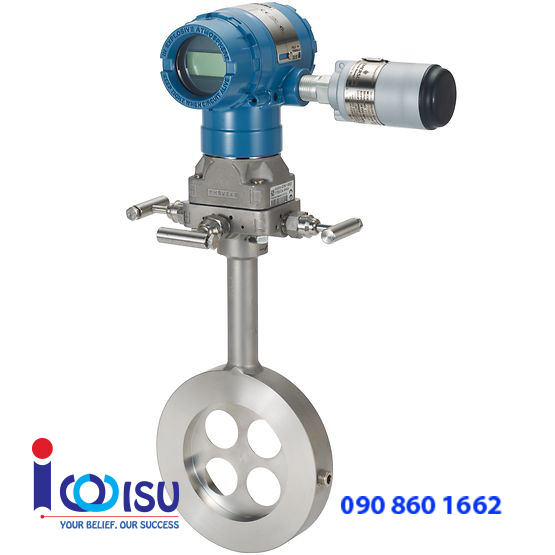

Patented 4-hole design enables accurate flow measurement in turbulent flow profiles

Innovative orifice plate requires only 2D upstream and downstream to reduce pipe straight-run requirements

Complete flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation

SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal

Easy installation enables quick instrumentation of measurement points without the cost of wiring
