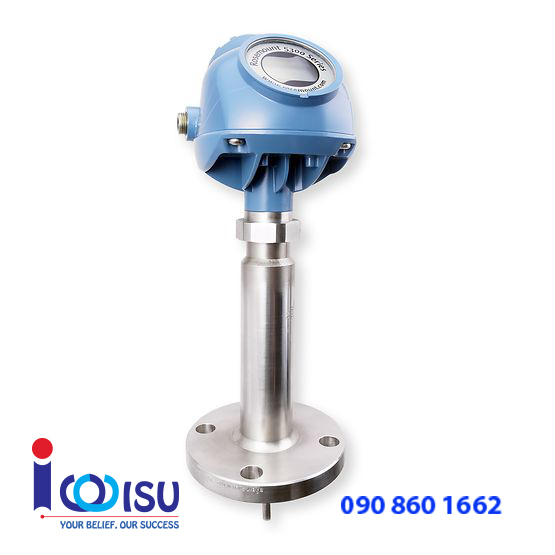

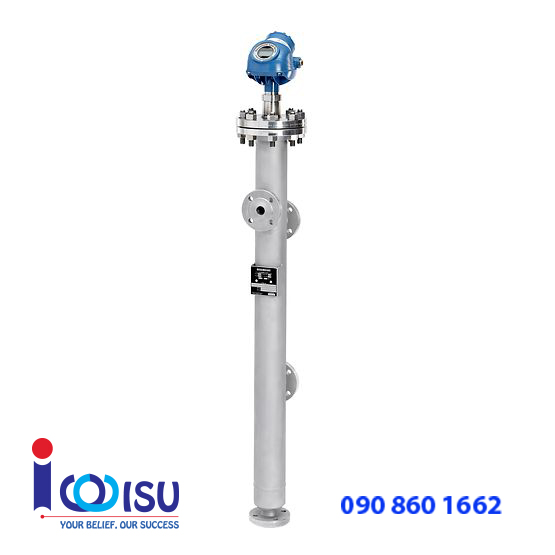

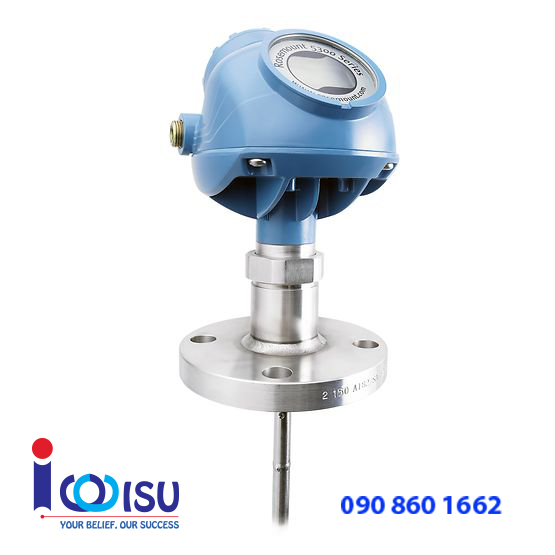

Rosemount 5300 Level Transmitter - Guided Wave Radar

Rosemount 5300 Level Transmitter - Guided Wave Radar

Mã sản phẩm: Level transmitter 5300

Giá: Liên hệ

The Rosemount 5300 Level Transmitter is ideal for challenging measurements on liquids, slurries, and solids, offering state of the art reliability and safety...

Mô tả sản phẩm

Specifications

Accuracy: ± 0.12 in. (3 mm)

Repeatability: ± 0.04 in. (1 mm)

Measurement Range: Up to 164 ft (50 m)

Operating Pressure: Full vacuum to 5000 psi (Full vacuum to 345 bar)

Operating Temperature: -320 to 752 °F (-196 to 400 °C)

Communication Protocol: 4-20 mA/HART®, Foundation™ Fieldbus, Modbus®

Safety: SIL 2 IEC 61508 certification
TÜV tested and WHG approved for overfill prevention

Diagnostics: Enhanced diagnostics enabling proactive maintenance

Probe Types: Rigid single lead, Segmented single lead, Flexible single lead, Rigid twin lead, Flexible twin lead, Coaxial, PTFE coated probes, Vapor probe

Warranty: Up to five years

Features

Direct Switch Technology gives increased sensitivity, high reliability, and long measurement ranges
Signal Quality Metrics gives you the ability to work proactively with your level instrumentation
Probe End Projection offers greater level measurement reliability
Dynamic Vapor Compensation for improved plant heat rate
Verification reflector for unique level transmitter verification
