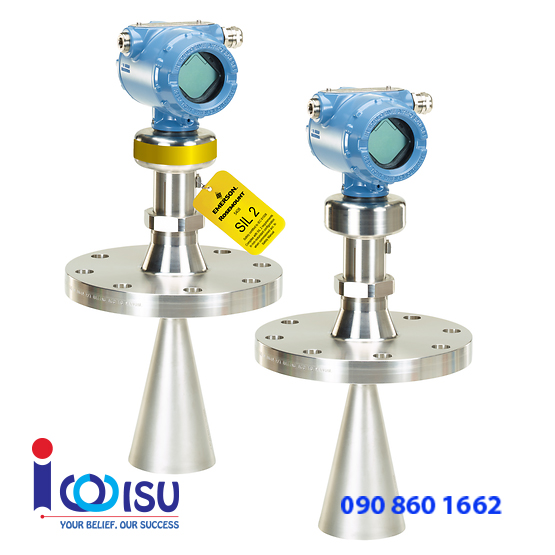

Rosemount 5408 Level Transmitter - Non-Contacting Radar

Rosemount 5408 Level Transmitter - Non-Contacting Radar

Mã sản phẩm: Rosemount 5408

Giá: Liên hệ

The Rosemount™ 5408 Non-Contacting Radar Level Transmitter uses enhanced technology and Human Centered Design to deliver accurate, reliable measurements on b...

Mô tả sản phẩm

Specifications

Accuracy: ± 0.08 in. (± 2 mm)

Measurement Range: 131 ft (40 m), 82 ft (25 m) for Rosemount 5408:SIS in Safety mode

Operating Pressure: 1450 psi (100 bar)

Operating Temperature: -76 to +482 °F (-60 to +250 °C)

Power Supply: 12-42.4V dc (12-30V dc in Intrinsically Safe installations)

Communication Protocol: 4-20mA HART (2-wire loop-powered)

Certifications/Approvals: ATEX, IECEx, FM, CSA, 3-A, CRN, see full specs for complete list of certifications

Safety: IEC 61508 certified to SIL 2
TÜV tested and WHG approved for overfill prevention

Antenna type: Cone antenna, Process seal antenna, Parabolic antenna

Features

26 GHz FMCW with unique energy efficient radar chip
Low 12V dc lift-off voltage
Immune to intermittent power loss
Unique PTFE seal design eliminates the need for o-rings
Model tailored to SIS requirements, certified to IEC 61508 SIL 2
Solid measurement with unique solids algorithm
Process seal antenna for applications with heavy condensation and aggressive medias. Also available with Tri Clamp connection.
3-A certified for hygienic applications
